OVERLAY OPERATIONS

There are many ways to overlay polygon coverages in ARC-INFO. We will be using the identity function.

Step 7a : Overlay forest and the current solution area

At the ARC prompt type :

Arc: identity

Usage: IDENTITY <in_cover> <identity_cover> <out_cover> {POLY | LINE | POINT}{fuzzy_tolerance} {JOIN | NOJOIN}

Arc: identity forestpoly solf solution

 Producing identity of forestpoly with solf to create solution
 Sorting...
 Intersecting...
 Assembling polygons...
 Creating new labels...
 Creating solution.PAT...
** Item "AREA" duplicated, Join File version dropped **
** Item "PERIMETER" duplicated, Join File version dropped
** Item "AREA" duplicated, Join File version dropped **
** Item "PERIMETER" duplicated, Join File version dropped
Arc:

Now let's look at the result. In ARC type :


Arc: items solution.pat

COLUMN   ITEM NAME        WIDTH OUTPUT  TYPE N.DEC
    1  AREA                   8    18     F      5
    9  PERIMETER              8    18     F      5
   17  SOLUTION#              4     5     B      -
   21  SOLUTION-ID            4     5     B      -
   25  FORESTPOLY#            4     5     B      -
   29  FORESTPOLY-ID          4     5     B      -
   33  GRID-CODE              4     8     B      -
   37  SOLF#                  4     5     B      -
   41  SOLF-ID                4     5     B      -
   45  INSIDE                 4     5     B      -

You can see the INFO file has both INSIDE and GRID-CODE ( tree types ) information stored. Look at the result in arcplot.

Arcplot: clear
Arcplot: arcs solution

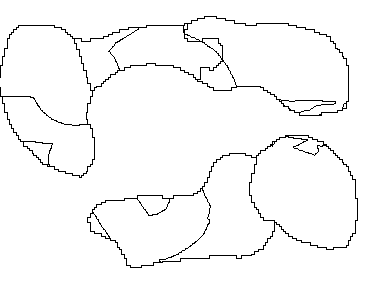

Figure 30: Overlay of forests and solution area.

You can see the overlay of sole with the forest polygons. We only need the forest areas inside the solution area so let's extract that using select.

Step 7b : Extract forest polygons within the current solution area

Another select operation .


Arcplot: reselect solution polys INSIDE = 100
SOLUTION polys : 14 of 29 selected.

Look at the map, now that we have selected our areas.


Arcplot: clear
Arcplot: polygonshades solution GRID-CODE

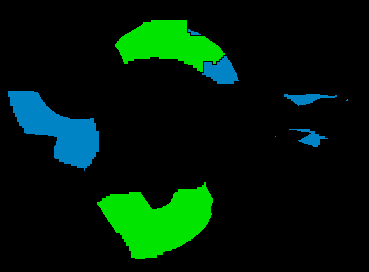

Figure 31: Polygonshades of our result map.

Now write the selection rule to a selection file.

Arcplot: writeselect final.sel
2 selected set(s) written to final.sel
0 Group-by rule(s) written to file

In ARC extract the selected polygons to a new coverage.

Arc: reselect solution final polys final.sel

 Reselecting POLYGON features from SOLUTION to create FINAL
 14 features out of 29 selected.
 Reselecting polygons...
Number of Polygons (Input,Output) =         29         15
Number of Arcs     (Input,Output) =         96         67
 Creating FINAL.pat...
65 unique nodes built for /W08/LANDUSE/GISCOURSE/FINAL
Arc :

Now we have our final map with the areas suitable for logging operations. Our last task is to calculate how much money will be made from the timber. We will do this next in INFO.
