The logging area must be within the blue polygon (within 5km of an existing road, but not within the black polygon { it will be in white on your screen} i.e. not within 10km of the shrine and 1km of the rivers, lake or sea.
How do we map this . i.e. how do we overlay these maps ?
Answer : We use erase.
Erase extracts one polygon from another. See below in figure 12. We erase the river, sea and shrine buffer polygons from our solution area which lies inside the 5km road buffer .
Figure 12: Erase operations in ARC-INFO
Arc: usage erase
Usage: ERASE <in_cover> <erase_cover> <out_cover>
{POLY | LINE | POINT | NET | LINK | RAW} {fuzzy_tolerance}
Arc: erase roadbuff waterbuff1 sola poly
Erasing roadbuff with waterbuff1 to create sola
Sorting...
Intersecting...
Assembling polygons...
Creating new labels...
Creating sola.PAT...
Arc:
This create a temporary step towards our final solution called sola.
To see what we have done go to arcplot.
Arcplot: clear Arcplot: polygonshades sola INSIDE

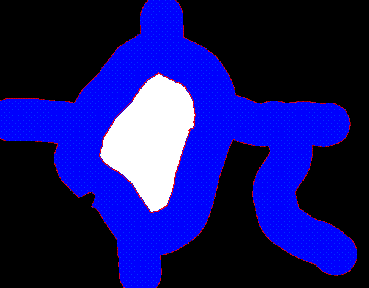

Figure 13: Roadbuffer after erase.
You can see by the blue area ( what is left of road buffer ) has pieces removed from it. The white area is not in sola, it is Outside but is painted white because it is surrounded by sola polygon - don't worry about this.
Now extract the river buffers from our current solution areas (sola).
Arc: erase sola waterbuff2 solb Erasing sola with waterbuff2 to create solb Sorting... Intersecting... Assembling polygons... Creating new labels... Creating solb.PAT... Arc:
To see the result go to arcplot.
Arcplot: clear Arcplot: polygonshades solb INSIDE

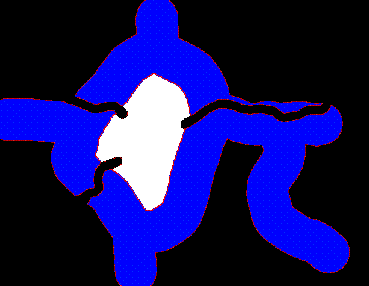

Figure 14: Roadbuffers with sea, lake and rivers buffers removed.
We can query this coverage to check that everything is OK. Remember the code for inside the solution area is 100 and outside is 1. The command in arcplot is :
Arcplot: identifym solb polys INSIDE Enter 9 key to exit.
Click with the crosshairs on the polygon you want to examine. If you click on any blue area you should get something like:
Record INSIDE
5 100 { inside the polygon }
If you click on the white area you should get :
Record INSIDE
5 1 { outside the polygon }If you click on the black area you should get:
No feature located.{nothing}
Arc: erase solb shrinebuff solc Erasing solb with shrinebuff to create solc Sorting... Intersecting... Assembling polygons... Creating new labels... Creating solc.PAT... Arc:
Once again in arcplot type :
Arcplot: clear Arcplot: polygonshades solc INSIDE

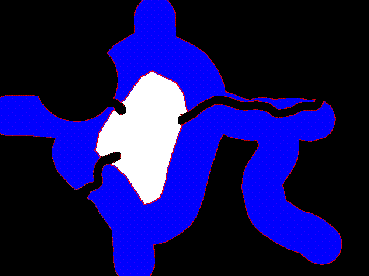

Figure 15 : polygonshades solc.
You can see another area has been cut from the top left and side of the blue region ( the area around the shrine ).
Okay that's the license restrictions dealt with, now what about the company selection procedures ?.
